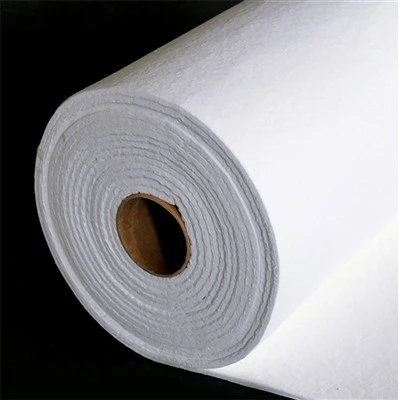

1 hli Thick 1260C Ceramic Fiber Ntawv
1mm tuab 1260C ceramic fiber ntawv yog tsim los ntawm qib high-qib ceramic fiber ntau nrog cov ntsiab lus slag tsawg, Nws yog featured nrog kub tsis kam thiab kub rwb thaiv tsev thiab siab tiv thaiv yaj muaj peev xwm, tsis tshua muaj thermal conductivity, tshuaj corrosion kuj thiab thermal shock stability.
Hauj lwm lawm
Khoom taw qhia
Ceramic fiber paj rwb yog cov khoom siv tseem ceeb rau kev ua 1 hli tuab 1260C ceramic fiber ntau daim ntawv, uas feem ntau yog ua los ntawm cov txheej txheem ntub dej. Ceramic fiber ntau thiab qhov tsim nyog ntawm binder sib xyaw, ua los ntawm ceramic fiber slurry, ceramic fiber slurry los ntawm cov khoom siv tshwj xeeb, xws li ntub cov tshuab nqus tsev, cov khoom sib kis ntawm cov pwm, tsim ntawm ceramic fiber ntawv qauv, tsim ceramic fiber. daim ntawv rau hauv lub tshuab ziab khaub ncaws, los ntawm kev kub kub kom qhuav, kom cov dej noo nyob rau hauv ceramic fiber ntawv maj mam evaporated, thiaj li tau txais cov khoom kawg. Raws li kev xav tau, qee qhov kev ua haujlwm tom qab kuj tseem tuaj yeem ua rau ntawm daim ntawv ceramic fiber ntau, xws li txiav, sib tsoo, txheej, thiab lwm yam, kom nws tuaj yeem ua tau raws li cov kev xav tau ntawm kev siv tswv yim.
Nta
Kev hloov pauv siab
Zoo tsim kua muag
Cov tuab tuab
Thermal shock resistance
Tsawg heev thermal conductivity
Adaim ntawv thov
Insulating gasket
Expansion sib koom
Tuag-txiav washers rau cov khoom siv hauv tsev
Gaskets, seals thiab sib cais media
Ladle hauv ob sab phlu reserve
Tuag liner
Tsheb Thermal Barrier (Silencer,
Catalytic tso pa tawm thiab tiv thaiv tshav kub)
Sib faib xov xwm
Txo cov cua kub poob los ntawm qhov sib cais inlet nozzles
Daim ntawv qhia
|
Yam khoom |
STD |
HP |
HA |
HTZ |
||
|
Kev ntsuas kub (degree) |
1260 (2300F) |
1260 (2300F) |
1360 (2480F) |
1430 (2600F) |
||
|
Ua haujlwm kub (degree) |
Tsawg dua los yog sib npaug rau 1050 |
Tsawg dua los yog sib npaug li 1100 |
Tsawg dua los yog sib npaug li 1200 |
Tsawg dua los yog sib npaug rau 1350 |
||
|
Xim |
Dawb huv |
Dawb huv |
Dawb huv |
Dawb huv |
||
|
Qhov ceev (Kg / m3) |
180-220 |
180-220 |
180-220 |
180-220 |
||
|
Kev hloov pauv mus tas li (%) |
950 degree X24h Tsawg dua los yog sib npaug rau -3.5 |
1100 degree X24h Tsawg dua lossis sib npaug rau -3.5 |
1200 degree X24h Tsawg dua lossis sib npaug rau -3.5 |
1350 degree X24h Tsawg dua lossis sib npaug rau -3.5 |
||
|
Thermal conductivity (w/m.k) |
400C |
0.07 |
0.07 |
0.069 |
0.068 |
|
|
600C |
0.09 |
0.09 |
0.088 |
0.087 |
||
|
800C |
0.12 |
0.12 |
0.110 |
0.10 |
||
|
Organic Cov ntsiab lus (%) |
10 |
8 |
8 |
8 |
||
|
Tensile Strength (Ntau dua lossis sib npaug rau Mpa) |
0.65 |
0.65 |
0.70 |
0.75 |
||
|
Tshuaj muaj pes tsawg leeg (％) |
AL2O3 |
45-46 |
47-49 |
52-55 |
39-40 |
|
|
AL2O3+SIO2 |
97 |
99 |
99 |
－ |
||
|
ZrO2 |
－ |
－ |
－ |
15-17 |
||
|
Moisture (%) |
Tsawg dua los yog sib npaug li 1 |
|||||
|
Loj (mm) |
Ntev: 10000 - 120000; Dav: 300-1800 Thickness: 0 50 -10; Raws li cov neeg siv khoom xav tau. |
|||||
|
Pob |
Thawv |
|||||
|
Daim ntawv pov thawj |
CE, ISO9001-2008; ISO14001-2004, SGS, ROHS, SASO, REACH |
|||||
Cim npe nrov: 1mm tuab 1260c ceramic fiber ntawv, Tuam Tshoj, lwm tus neeg, Hoobkas, customized, lag luam wholesale, nqe, dawb qauv
