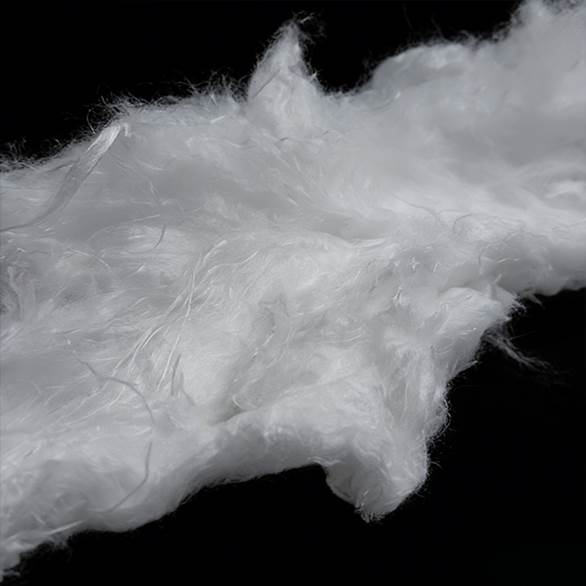

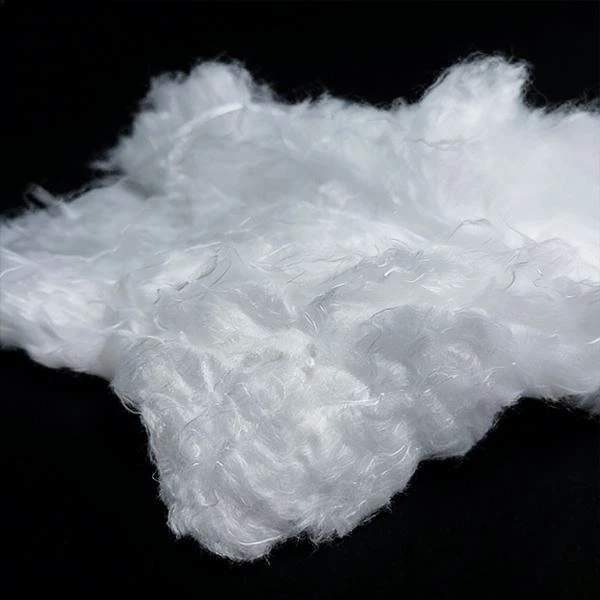

Polycrystalline Alumina Fiber Rau Cov Hnyav Hnyav -Tub kub rwb thaiv tsev

Product Description:

Polycrystalline Alumina Fiber ntau heev -Tub kub rwb thaiv tsev 95-N yog cov tshuaj tiv thaiv zoo tshaj plaws tsim tshwj xeeb rau kev tswj hwm kev lag luam thermal. Tsim los siv lub xeev-of-the-art sol-gel thev naus laus zis, nws feem ntau yog tsim los ntawm high-purity alumina (Al₂O₃) nrog cov ntsiab lus sib npaug silica (SiO₂).

Raws li cov khoom siv ultra-lub teeb yuag refractory, ALWOOL 95-N sawv tawm nrog nws lub ntsej muag dawb, lub ntsej muag zoo nkauj, thiab ua haujlwm ntev. Nws txhawb nqa kev ua haujlwm kub siab dua li cov pa ALWOOL 72-M polycrystalline alumina fiber ntau, ua rau nws xaiv qhov kev xaiv zoo rau qhov siab-kub ib puag ncig. Tshaj li nws daim ntawv fiber ntau, cov khoom siv no tuaj yeem ua tau zoo rau hauv cov laug cam, precision-engineered zoo li tus, thiab lwm yam kev cai configurations kom tau raws li cov kev cai tsim.

Kev siv dav dav hauv siab- kub rwb thaiv tsev hauv ob sab phlu, rooj tog hauv tsev, thiab kev tiv thaiv kev tiv thaiv hauv huab cua, ALWOOL 95-N muaj qhov tshwj xeeb thermal stability, tsis tshua muaj thermal conductivity, thiab lub neej ntev kev pab cuam nyob rau hauv huab cua txias. Nws versatility thiab kev ua tau zoo ua rau nws yog ib yam khoom tseem ceeb rau engineers thiab manufacturers nrhiav robust, zog-npaum kev daws teeb meem nyob rau hauv advanced thermal daim ntaub ntawv.



Khoom nta:

Zoo heev thiab qis -kub tsis kam, nrog kev ua haujlwm ntawm 1400℃txog 1800 degree;

Superior tsis kam rau acids thiab alkalis;

Fiber tsis pub txhaj tshuaj (Ntau dua lossis sib npaug ntawm 45μm); Cov ntsiab lus txhaj tshuaj qis dua ua rau cov thermal rwb thaiv tsev zoo dua thiab kev ua haujlwm ntawm refractory;

Cov khoom siv hluav taws xob zoo heev;

High tsim yooj; cov khoom uas muaj cov khoom sib txawv tuaj yeem tau txais los ntawm kev kho cov tshuaj muaj pes tsawg leeg thiab cov txheej txheem kho cua sov.



Cov khoom siv:

Aerospace thermal tiv thaiv systems

Siab -kub rauv hauv ob sab phlu / rwb thaiv tsev panels

Rocket engine rwb thaiv tsev txheej

Hauv ob sab phlu rau molten hlau hloov ladles

Rwb thaiv tsev cylinders rau photovoltaic siv lead ua kev loj hlob rauv



Product Technical Parameters:

Yam khoom	AL72-F	AL72-M	AL95-M	AL95-N
Chemical Composition Al₂O₃, SiO₂ (%)	72-75:25-28	72-75:25-28	>95:<5	>95:<5
Mineral Structure	δ-Al₂O₃, -Al₂O₃	Mullite	-Al₂O₃	-Al₂O₃
Kev ntsuas kub (degree)	1600	1600	1600	1800
Melting Point (zeeg)	>1800	>1800	>2000	>2000
Qhov ceev (g / cm³)	3.1	3.1	2.8	3.4
Nruab nrab Fiber Diameter (μm)	5.5-7.5	5.5-7.5	3-5	3-5
Cov ntsiab lus txhaj tshuaj (%) (Ntau dua lossis sib npaug ntawm 45μm)	0-2	0-2	0-2	0-2
Cov ntsiab lus impurity (%)	<0.5	<0.5	<0.5	<0.5
Monofilament Tensile zog (MPa)	Ntau tshaj los yog sib npaug rau 1200	Ntau tshaj los yog sib npaug rau 1000	-	-
Monofilament Tensile Modulus (GPa)	Ntau dua los yog sib npaug rau 100	Ntau dua los yog sib npaug rau 100	-	-



Daim ntawv pov thawj khoom

Vim Li Cas Xaiv Peb

Kev paub dav dav

Nrog 33 xyoo ntawm kev tsim cov kws tshaj lij thiab 20 xyoo ntawm kev xa tawm hauv kev lag luam ceramic fiber rwb thaiv tsev, SUNTHERM yog cov chaw tsim khoom ntseeg siab thiab cov kws tshaj lij ntawm cov ntaub ntawv rwb thaiv tsev thermal.

Superior Quality

SUNTHERM cov khoom raug tsim nyob rau hauv cov txheej txheem tsim khoom nruj thiab nruj tswj kev ua haujlwm zoo, ua kom muaj kev ua tau zoo thiab txhim khu kev qha.

Kev daws teeb meem

SUNTHERM muab cov kev pabcuam tus kheej thiab kho raws li koj cov kev xav tau tshwj xeeb, muab cov kev daws teeb meem zoo rau ntau yam kev thov.

Kev them nyiaj yug OEM

SUNTHERM muaj kev pabcuam OEM, pab koj tsim koj lub hom phiaj nrog kev ntseeg siab.

Kev xa khoom sai & ntseeg tau

Ua tsaug rau SUNTHERM loj - nplai thiab muaj peev xwm tsim khoom ruaj khov, peb ua kom nrawm nrawm thiab nyob rau - lub sijhawm xa khoom rau txhua qhov kev txiav txim.

Tus nqi sib tw

Los ntawm xyoo ntawm kev mob siab rau kev lag luam thoob ntiaj teb thiab cov khoom lag luam zoo, peb muaj peev xwm muab cov nqi sib tw tshaj plaws yam tsis muaj kev cuam tshuam rau qhov zoo.

Cov neeg tuaj xyuas

Ntim Zaub
SUNTHERM muaj pab pawg tshaj lij nrog kev paub nplua nuj hauv kev ntim khoom rau ntau yam khoom.

Yam khoom





FAQ

Q1: Koj qhov Kev Txiav Txim Tsawg (MOQ) yog dab tsi?

A1: Peb muab cov kev xaiv MOQ hloov tau kom haum rau ntau yam ntawm cov neeg siv khoom xav tau. Ntau dua li qhov tsawg kawg nkaus, peb cov MOQ txawv ntawm cov khoom lag luam. Peb kuj muab cov nqi sib tw uas ua rau muaj kev sib tw nrog cov ntim loj dua, ua kom tus nqi - ua tau zoo rau ob qho kev txiav txim mus sib hais thiab kev yuav khoom ntau.

Q2: Koj cov nqe lus them nqi yog dab tsi?

A2: Peb cov qauv kev them nqi yuav tsum muaj 30-50% tso nyiaj los ntawm T / T raws li qhov kev txiav txim pom zoo, nrog rau qhov seem tshuav them ua ntej xa khoom tom qab ua tiav. Peb kuj ua raws li lwm txoj hauv kev them nyiaj, suav nrog L / C, PayPal (rau kev lag luam me), thiab Western Union, nyob ntawm seb koj nyiam.

Q3: Koj puas muab kev pabcuam lossis OEM kev pabcuam?

A3: Yog, kiag li. Leveraging peb nyob rau hauv - tsev tsim khoom thiab kev paub R & D pab neeg, peb tshwj xeeb hauv ob qho tib si OEM thiab ODM tej yaam num. Peb tuaj yeem tsim cov khoom raws li koj qhov kev qhia tshwj xeeb- suav nrog qhov ntev, kev ua haujlwm zoo, thiab ntim khoom lossis cov khoom lag luam.

Q4: Koj lub sijhawm ua khoom lag luam raug cai yog dab tsi?

A4: Lub sijhawm tsim khoom yog nyob ntawm cov khoom sib txawv thiab kev txiav txim loj. Feem ntau, lub sijhawm ua haujlwm yog li ntawm 7 txog 15 hnub ua haujlwm tom qab kev txiav txim pom zoo thiab tau txais daim ntawv tso nyiaj. Peb yuav muab lub sijhawm xa khoom tau lees paub thaum tag nrho cov ntsiab lus ntawm qhov project tiav.

Q5: Koj puas muab cov qauv? Koj txoj cai qauv yog dab tsi?

A5: Yog lawm, cov qauv muaj rau kev soj ntsuam zoo. Cov nqi coj mus kuaj thiab cov nqi thauj khoom feem ntau them ua ntej; Txawm li cas los xij, peb zoo siab txiav tawm lossis thim rov qab tag nrho cov nqi no thaum muab tso rau ntawm qhov kev txiav txim loj loj.

Cim npe nrov: polycrystalline alumina fiber ntau rau huab cua siab - kub rwb thaiv tsev, Tuam Tshoj, lwm tus neeg, Hoobkas, customized, lag luam wholesale, nqe, dawb qauv
